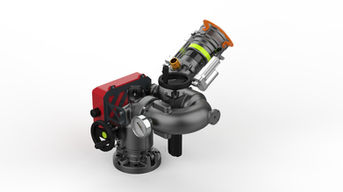

FM40 Fire Fighting Monitors
Our FM40 monitor is a compact, manual monitor for a various environment. It can be used as a roof monitor for all types of vehicles. The flow rate can go up to 4,000 lpm at 10 bar inlet pressure. Vertical range is from -30° to +90°, horizontal range 350° by electric motors. It can be equipped with different outlet equipment or couplings.
Overview
FM40 Technical Specifications
Drive:
Max. Flowrate:
Max. Pressure:
Inlet Size:
Outlet Size:
Vertical Range:
Horizontal Range:
Nozzle Type:
Foam Barrel:
Camera:
Controller:
Position Indicator:
Projector:
Material/Finish:
Electrical Motors, 12VDC / 24VDC
4000 l/min @7 Bar Nozzle Pressure
PN16
3" Flange (DIN 2501) / 3" Female BSP / 3" Female NPT
3" Flange
-40º, +90º
-175º, +175º
Straight Stream / Wide Angle Fog Nozzle with Integrated Foam Suction (%3-6-9)
Foam Pipe / Foam Pipe with Deflector
Optional
6 Button Remote Controller
Potentiometers
Optional
Aluminum, Hard Anodized
Performance
FM40 Performance & Certificates
FM40 Reach Data (.PDF)
FM40 Certificate of Conformance to NFPA 1901 & NFPA 1964 (.PDF)
FM40 Certificate of CE (.PDF)
Drawings
FM40 Drawings & Service Documents
FM40 Parts List (.PDF)
FM40 Installation and Operating Instructions (.PDF)
